Murphy Fine Arts Center
Recital Hall Technical Specifications

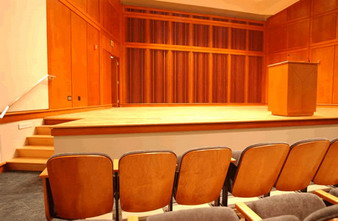

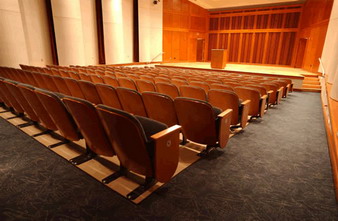

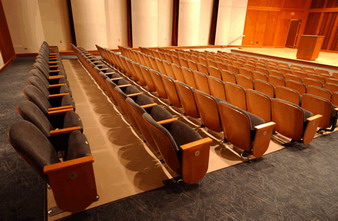

Specially-treated maple wood paneling adds an air of warmth and intimacy to the Recital Hall. Acoustically balanced to accomodate oratory, song and instrumentals, the hall provides a comfortable setting for small audiences.
Seating Capacity: 167
| STAGE SPECIFICATIONS | |
|---|---|
| Width | 31'- 0' |
| Depth | 20' - 0' |
| House Floor to Stage | 2' - 6" |
| SOUND | |
| FOH | |
| Crest Audio 24ch. Mixing console | |
| DBX 166-xl compressor limiter/gate | |
| DBX 323-1l dual 1/3 octave graphic eq. | |
| Monitor | |
| Mon Mixes | 2 |
| DBX 166xl dual compressor limiter/gate | 1 |
| DBX 323-1l dual 1/3 octave graphic eq | 1 |
| Full range wedges | 2 |
| Effects | |
| TC-Electronic M2000 | |
| Amps (Full range system) | |
| Crest-4801 | 1 |
| Crest-3301 | 4 |
| Crest-audio CA-2 booth mon. | 1 |
| Playback rack | |
| Denon DN-T620 cd/cassete combo-deck | |
| Tascam DA-40 DAT player/recorder | |
| Speaker Boxes (EAW) | |
| JF560Z left/right | 2 |
| MK5194 center | 1 |
| SB150R center-subs | 2 |
| Mics | |
| Shure UHF daul system/lav | 1 |
| Shure Beta 58A mics | 12 |
| AKG-CK-91 condencer | 6 |
| Crown PCC-160 | 4 |
| Shure Microfles MX-418 Pod-mics | 2 |
| Snakes / DIs | |
| 24 ch. Snake | 1 |
| Wirldwind-8ch. Sub di's snake | 2 |
| Wirldwind mic cable | 80 |
| ¼ cable | 4 |
| Speaker out put cable | 4 |
| Power Distribution | |
| 200 amp Three phase | |
| Hearing Assist. | |
| Sennheiser S120-Hearing Transmitter | |
| Sound Pressure Levels | |
|
Due to the potential volume levels available with our FOH system that may come into the building with a show, the MFAC has adopted a very strict policy regarding SPL. The following maximum db level restrictions have been set for the protection of our audience members, crew, and artists. At no time shall the maximum A-weighted SPL ever reach above 110db at the Center of the House (COH) in Row "EE." MFAC reserves the right to direct their Head Audio Engineer or his designate to reduce system levels to remain within acceptable SPLs. A-weight SPL @ COH Maximum Time
|
|
| Audio Challenges in the Recital Hall | |
|
The Recital Hall was designed primarily for vocal and acoustical instrument events. Please Note: Due to the acoustic design of the front of the house, we strongly discourage the placing of the speaker stack on stage, as excessive echo slap back occurs, severely hindering intelligibility. |
|
| Clearcom Intercom system | |
| Stations 2-ch. | 4 |
| LIGHTING | |
| Control Console | |
| STRAND LBX 125 channes | |
| Dimmers and Control | |
| 2.4K dimmers | 36 |
| DRESSING ROOMS | |
| Stage Level (2nd floor) | |
| Green Rooms | 2 |
| Single Dressing (w/shared bathroom & shower) | 2 |
| Below Stage (1st floor) | |
| Single Dressing (w/bathroom & shower) | 1 |
| Single Dressing (w/shared bathroom & shower) | 2 |
| Chorus Dressing - 9 / occupancy per (w/bathroom & shower) | 2 |
| Chorus Dressing - 11 / occupancy per (w/bathroom & shower) | 2 |
